Chaplin's patent plane information page

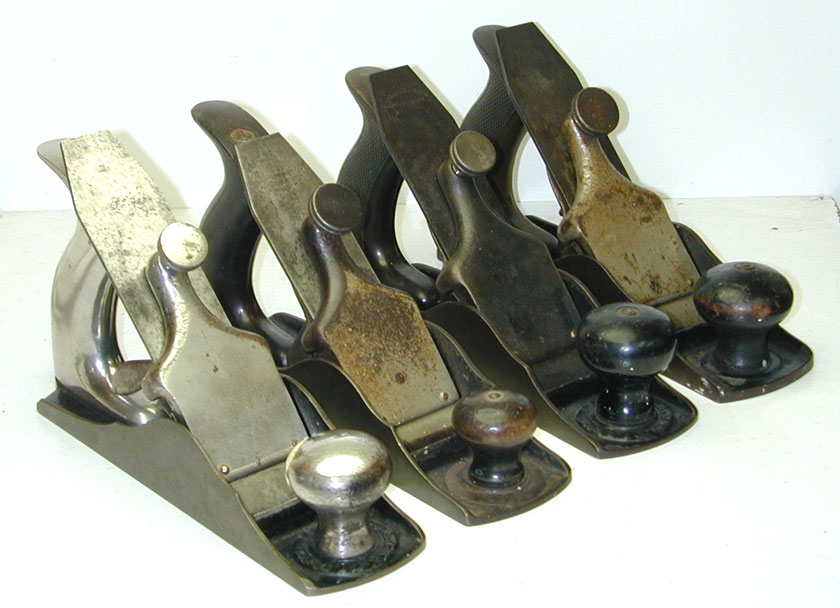

Chaplin's Original Patent #3 size planes

click on the images for a larger picture

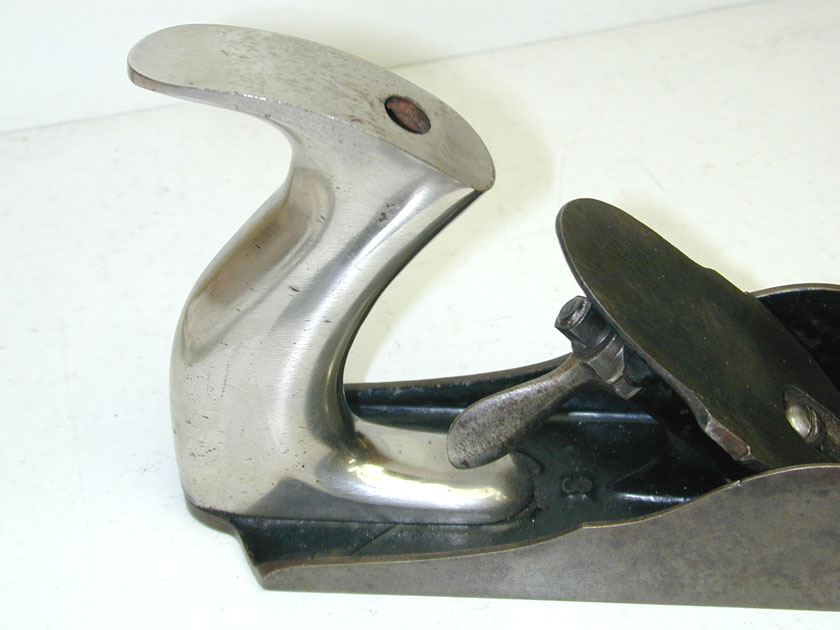

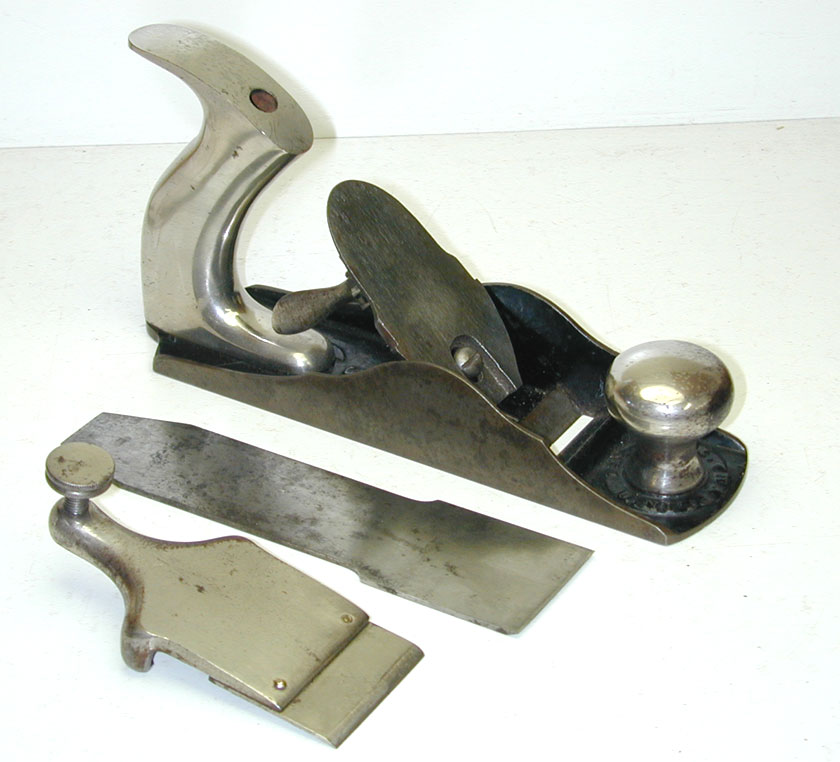

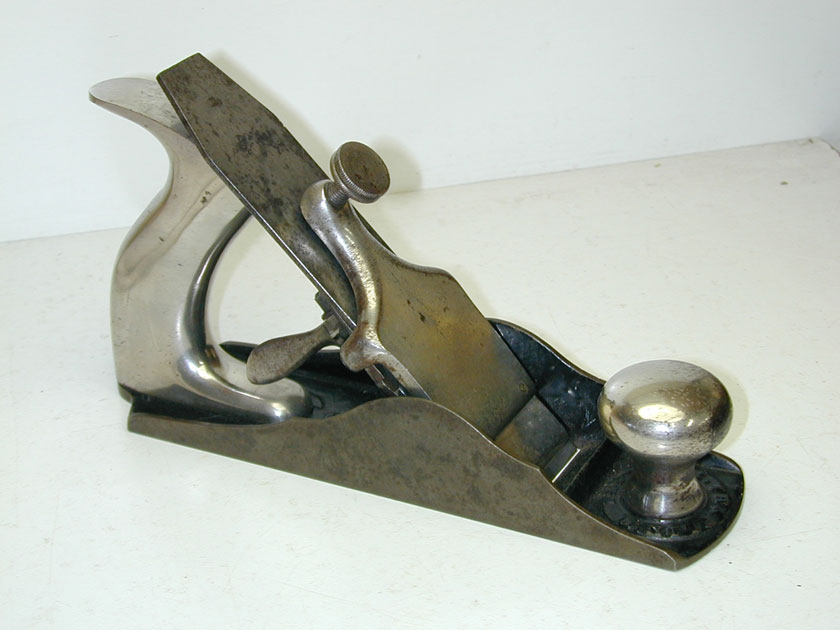

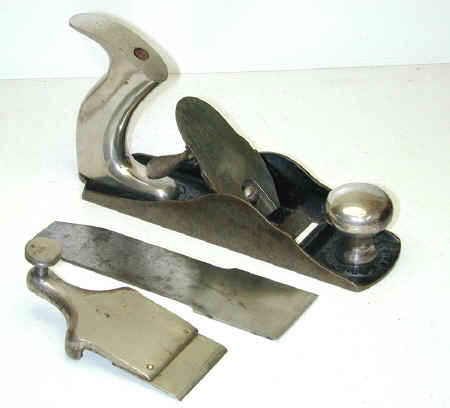

#3 iron handle





#203

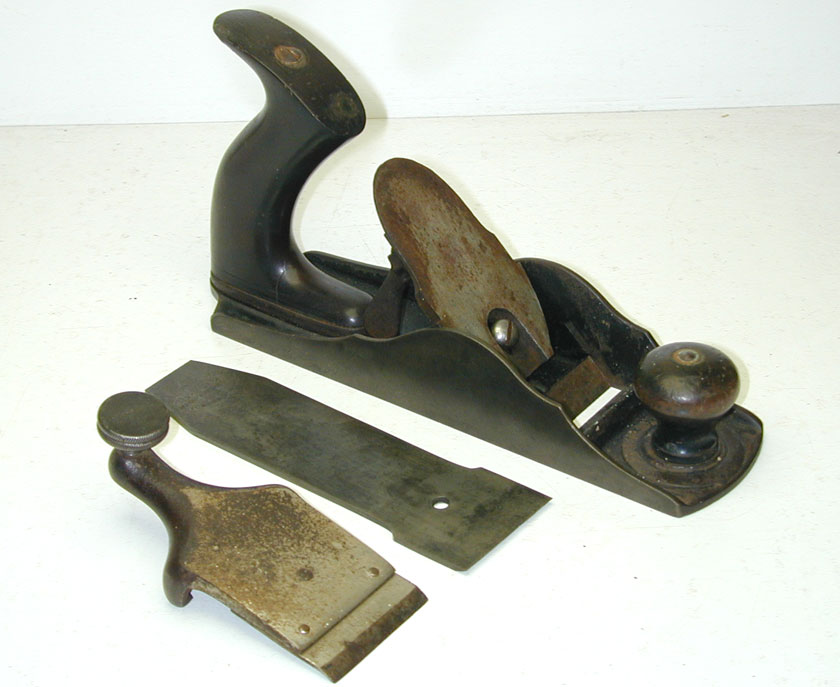

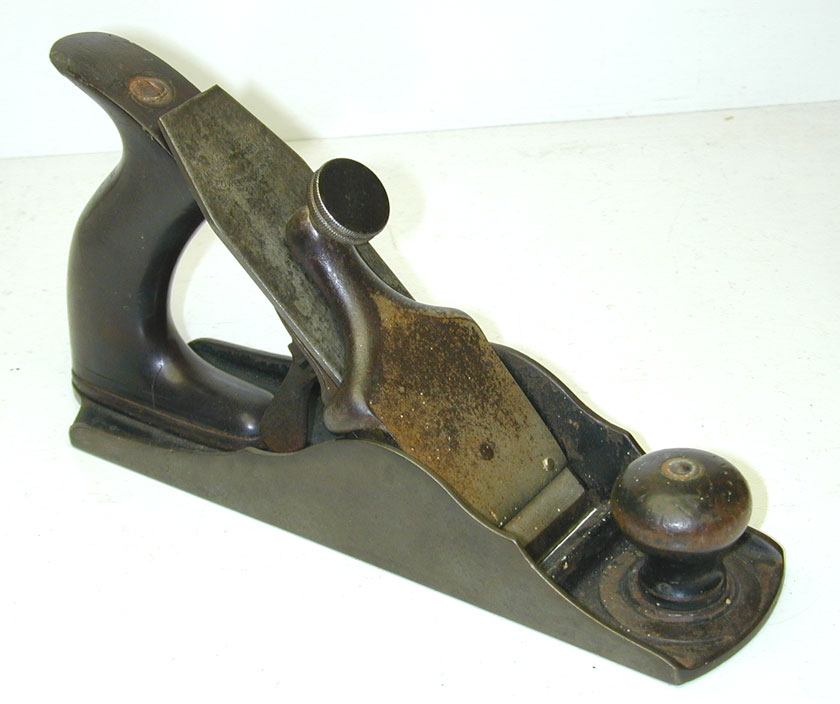

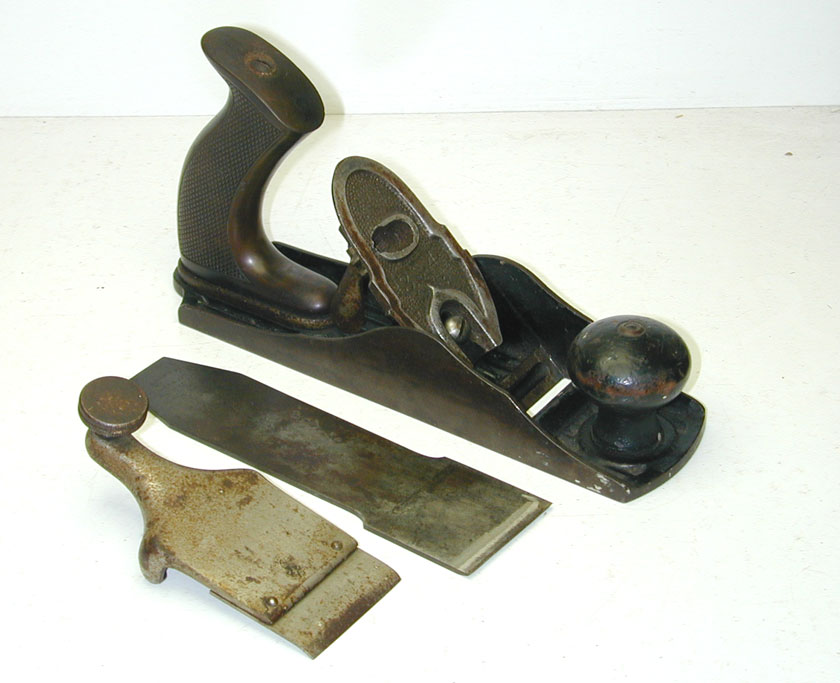

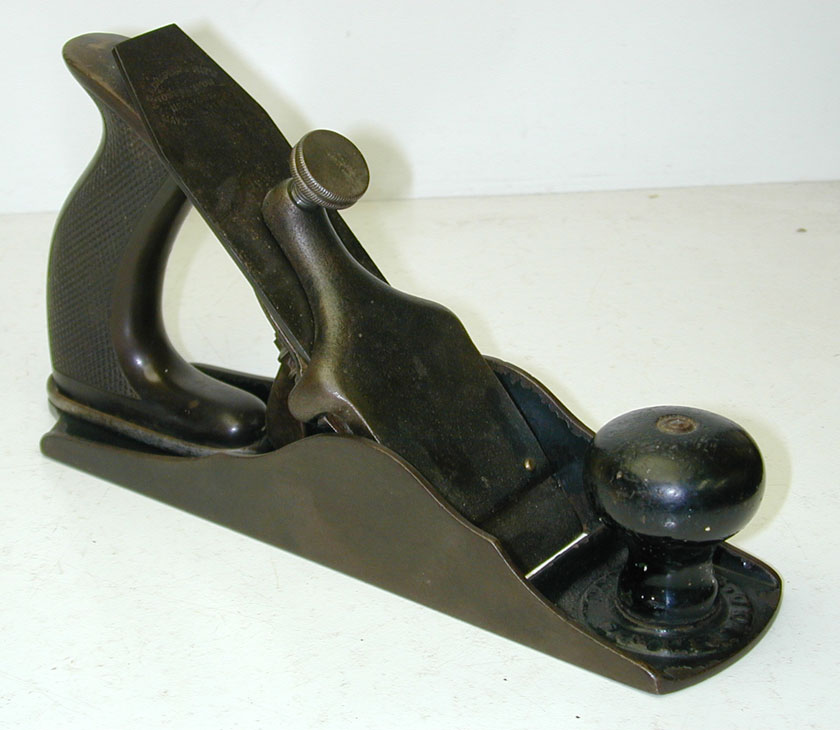

This plane has a smooth rubber handle in the shape of the iron handle with a longer horn, and a small wooden knob with Chaplin's Patent machined away from the body around the knob.


Blade looks like a replacement from a wooden body plane #72 or #73 and the lever has a brass rivet in the middle, fitted later.




#203 smooth

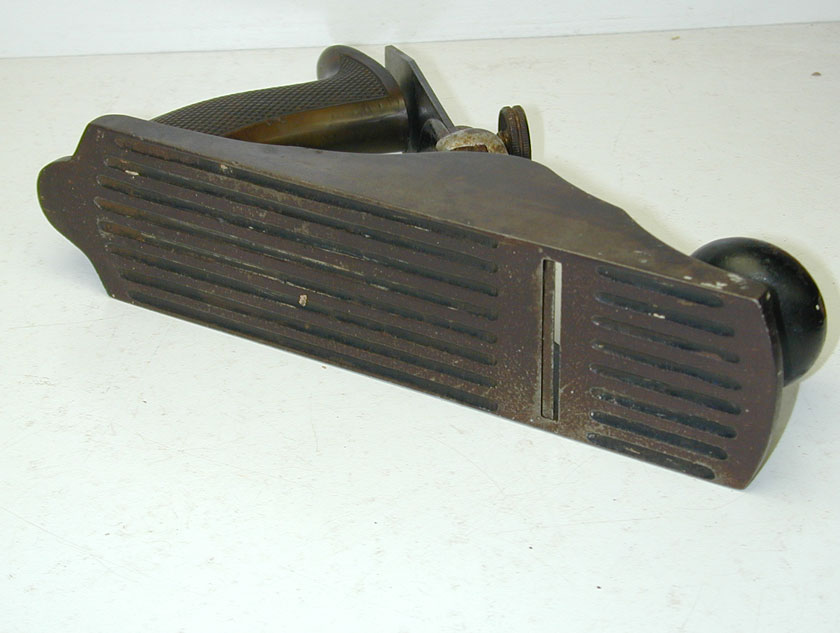

#1203 Corrugated
